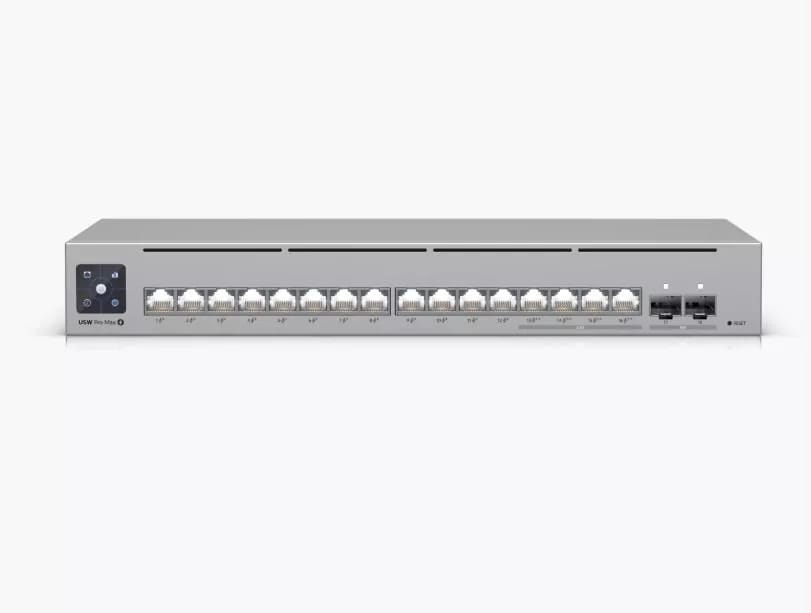

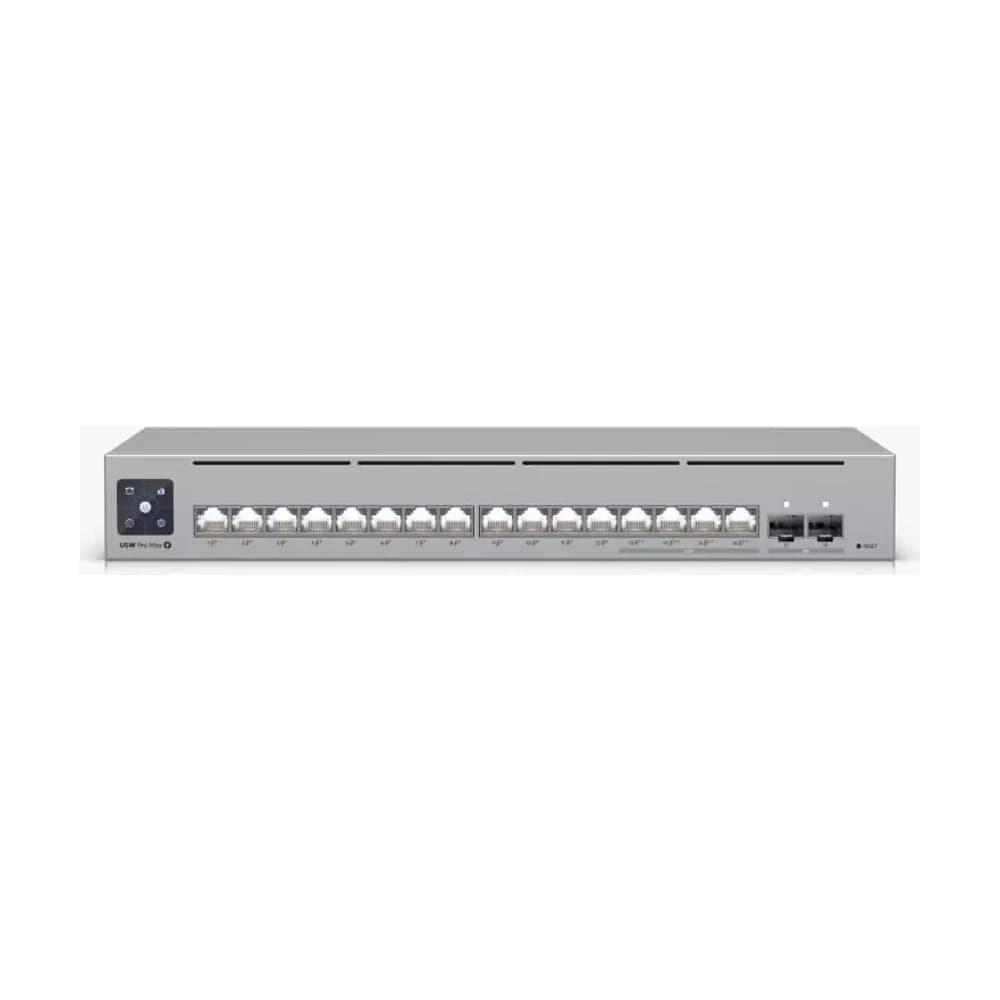

USW-Pro-Max-16-PoE Pro Max 16 PoE Port Layout 1 GbE RJ45 12 (All PoE+)(1G/100M/10M) 2.5 GbE RJ45 4 (All PoE++)(2.5G/1G/100M/10M) 10G SFP+ 2(10G/1G) Max. PoE Output Up to PoE++ Total PoE Availability 180W Layer 3 Form Factor Rack mount (1U),desktop, wall Performance Switching Capacity 84 Gbps Total Non-Blocking Throughput 42 Gbps Forwarding Rate 62 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 Hardware PoE Ports PoE+ 12 PoE++ 4 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 32W PoE++ 64W Max. Power Consumption 25W (Excluding PoE Output) 210W (Including PoE Output) Power Method AC Adapter Power Input Method AC input Power Supply AC/DC, external, 210W Supported Voltage Range 50—54V DC Management Ethernet AR
